Features

  • High temperature range: - 50°C to + 120°C
  • Tensile strength, flow limit high strength: 70-80 Mpa
  • Toughness (grooved Charpy): 8 kJ / m2 - no fracture
  • Excellent sliding properties: m = 0,25-0,45 (dry sliding and steel)
  • High hardness (Rockwell): M 86 - M 90
  • Good damping and fatigue strength
  • Can be used in underwater mode up to 80°C and does not swell due to moisture,
  • Very well machined on automatic machines
  • Density: 1,4 1kg / dm3

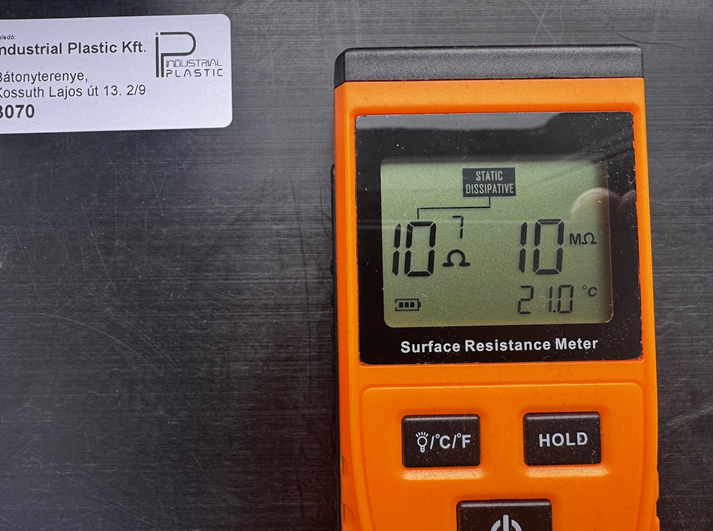

  • For ESD it has a surface resistance of 106-109 Ω.
  • Black and white colours.

Use:

Excellent machinability, it is particularly suitable for the production of mechanical precision components.

Small-module gears; valve seats; springs; sliding elements; control cams; insulators in the electrical industry; machinery elements in constant contact with water rollers; binding elements, etc.

Machining:

Cutting, turning, milling, drilling, rubbing, sawing

Excellent cutting plastics. Conventional metal tools, in some cases woodworking tools-carbon steel, high-speed steel, carbide metal, diamond-can be used in a sharp finish.

Cooling is recommended to use high cutting speeds.

For turning: v = 200-500 m / min recommended
For milling: v = 200-400 m / min recommended
For drilling: v = 50-100 m/min recommended

Adhesive and weldable, but not recommended!



IPlastic Pom rod
IPlastic Pom table
IPlastic Pom ESD rod
IPlastic Pom ESD table
6,4 EUR/kg
6,4 EUR/kg
17,5 EUR/kg
17,5 EUR/kg

Our prices are calculated at the current daily Euro rate and do not include VAT!

Type
Thickness (mm)
Width x Length (mm)
POM table
POM table
8, 10
20, 30, 40, 50
610 x 1220
1000 x 2000
ESD
Thickness (mm)
Width x Length (mm)
POM table
8, 10, 20, 30, 50, 100
610 x 1220
Thickness (mm)
Length (mm)
POM rod
8, 10, 12, 15, 20, 30, 40, 60, 80, 100
1000
ESD
Thickness (mm)
Length (mm)
POM rod
8, 10, 12, 15, 20, 30, 40, 60, 80, 100
1000
